1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0

Brand Name : HuaXin

Model Number : HX147ON1490-A

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $5.6

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : colour oled display

Size : 1.47 inch

Name : oled lcd display

Resolution : 194x368

interface : 30pins QSPI

View angle : all

Brightness : 450C/D

Contact Now

1.47 Inch Touch Panel OLED Display Screen - 194x368 Resolution - 31PINS QSPI Interface
Product Specifications
Display Technology Color OLED Display
Size 1.47 inch
Resolution 194x368
Interface 30pins QSPI
View Angle All
Brightness 450C/D
Technical Parameters
Part Number HX147ON1490-A
Display Technology AMOLED
Screen Size 1.47 inch OLED
Operation Temperature -20 ~ +70 ℃
Active Area 17.46 × 33.12 mm
Panel Size 19.36 × 36.17 × 0.78 mm
Brightness 450 cd/m²
Interface QSPI
Pin Quantity 31 PINS
Contrast Ratio 10000:1
Driving IC SH8501B0, ZTW622
Touch Panel With Oncell

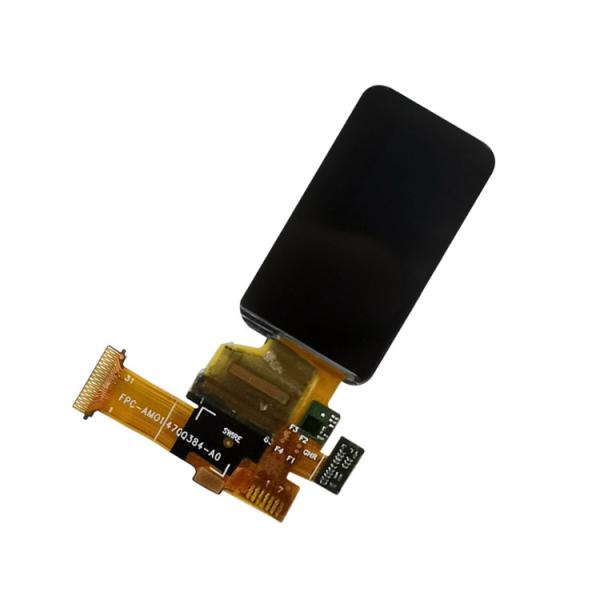

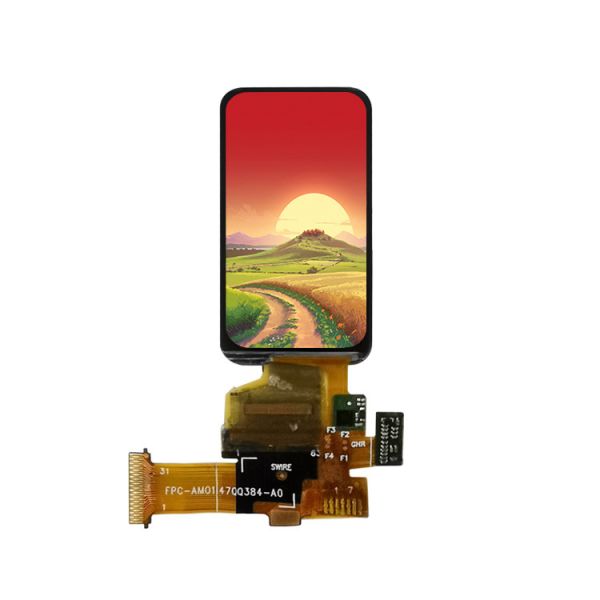

Product Images
1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0 1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0 1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0 1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0
Technical Drawings
1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0 1.47 Inch Oled Display Screen 1080*1024 Dots 31PINS QSPI Interface Driving IC SH8501B0
AMOLED Technology Overview
Key Advantages
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
Limitations

AMOLED displays are more expensive than LCD and TFT technologies, have a shorter lifetime, and offer lower peak brightness in sustained use.

Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of engineering expertise
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays

Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series

Registered Capital: 20 million
Employees: 500+
R&D: 10% of workforce
QC: 15% of workforce

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand/Day
Backlight Production 100 200 300 500 500 Thousand/Day
OLED Production 10 20 30 40 50 Thousand/Day
Typical Applications
  • Smartphones and tablets
  • Wearables (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical and smart home devices
Power Efficiency Comparison
AMOLED vs LCD/LED
  • Power Consumption: AMOLED consumes power per pixel (dark pixels use less), while LCD requires constant backlight
  • Content Dependency: AMOLED more efficient for dark content; LCD power usage remains constant
  • Brightness Control: AMOLED adjusts pixel brightness individually; LCD has fixed backlight brightness
  • Display Size: AMOLED more efficient for smaller displays; LCD backlights become less efficient at larger sizes
