2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy

Brand Name : HuaXin

Model Number : HX225FHD010

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $1.7-$2

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 225 inch

Resolution : 76*284

interface : 4 LINE MIPI

Driving IC : ST7789

Brightness : 600C/D

view angle : all

Contact Now

【2.25-inch TFT LCD Long Strip Color Screen】76×284 Resolution ST7789 Driver Chip Serial Port Interface High-Definition Display Suitable for Industrial Equipment Status Bars / Smart Terminal Data Screens Plug-and-Play Narrow Space Adaptation
Key Specifications
Display Technology TFT module
Display Size 2.25 inch
Resolution 76×284
Interface
4 LINE SPI
Driving IC ST7789
Brightness 600C/D
View Angle All
Technical Parameters
Part No. HX225FHD010
Display Mode 2.25 inch TFT display

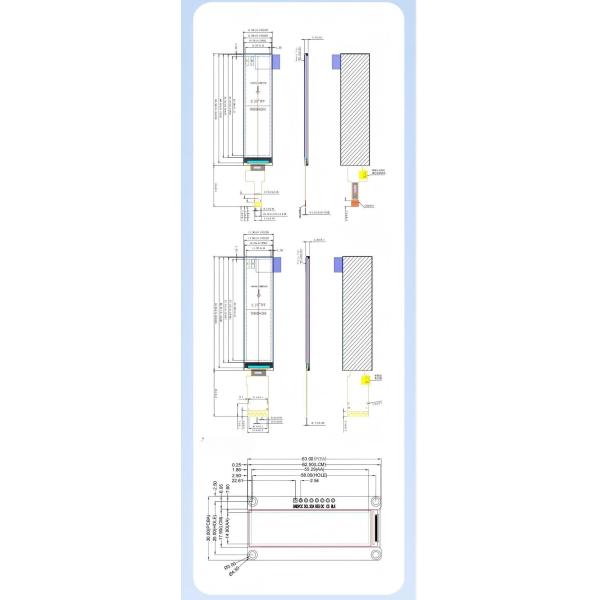

Outline Size (mm)
17.9(H)*62.5(V)*2.36(D) (mm)
AA Size (mm)
14.79*55.29 (mm)
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Product Images

2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
TFT Product Knowledge
2.25-inch TFT LCD color screen | 76×284 long strip resolution, ST7789 driver, serial port screen, dedicated for industrial equipment status bars, easy
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
About Huaxin Technology (Enshi) Co., LTD

Located in Hubei Enshi, founded in 2009. High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
