7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

Brand Name : HuaXin

Model Number : HX700066S0

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $16~$15.1

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : bar type tft LCD

Name : bar type tft

Display size : 7 inch tft

Resolution : 280*3RGB(H)X1424(V)

interface : MIPI

Brightness : 800c/d

View angle : all

Contact Now

HX700066S0 is 7 inch Bar Type TFT display module , 280X1424 Resolution, 30 PINS MIPI interface, brightness is 800cd/m2 TFT module,Module Driver IC is OTA7290B and view angle is free
Key Specifications
ITEMSpecification
Model NumberHX700066S0
size7
LCD TypeNormally Black
Drive elementTFT active matrix
Number of pixels280*3RGB(H)X1424(V)
Pixel arrangementRGB stripe
Pixel Pitch (W*H)0.12(H) X 0.12(V)
Active area33.6(H) x 170.88(V)
Mechanical OutlineSize(W*H*T)38.2(W) ×181.47(H) ×3.45(T)
Viewing directionALL O’CLOCK
LCM Driver ICOTA7290B
LCM interfaceMIPI Interface
Lcm pin count30
Backlight leds8
Backlight current200
工作温度/operating temperature-20~70
储存温度storage temperature-30~80
Luminance800

Product Images

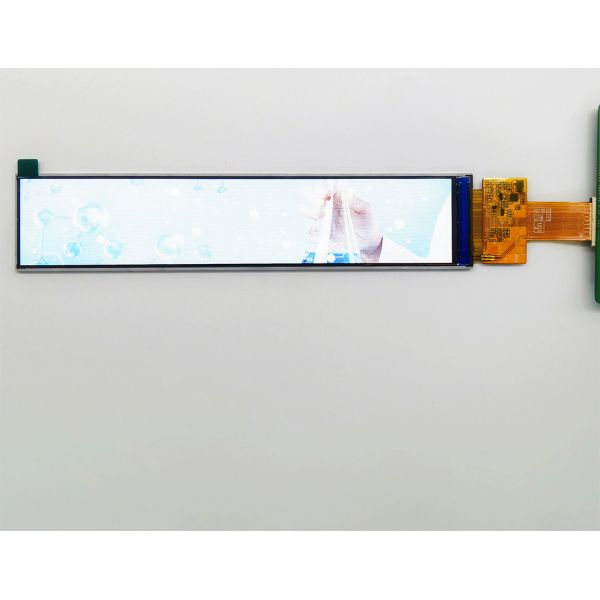

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2










Technical Drawings
7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2
7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2
TFT Display Characteristics
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response time for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient with lower power consumption
  • Available in various sizes from small to large panels
  • LED backlighting for uniform illumination
  • Versatile applications across multiple industries
Product Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Company Advantages
  • Cost-effective operations with inland factory location
  • Advanced equipment ensuring stable product quality
  • Fully automated production processes
  • Professional engineering team with 20+ years experience
  • In-house design capability for customized solutions
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products

Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series

Registered Capital: 20 million | Employees: 500+
R&D: 10% of workforce | Quality Control: 15% of workforce

Production Capacity
Annual Production Capacity20212022202320242025Unit
LCD Production4.59999Thousands/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
