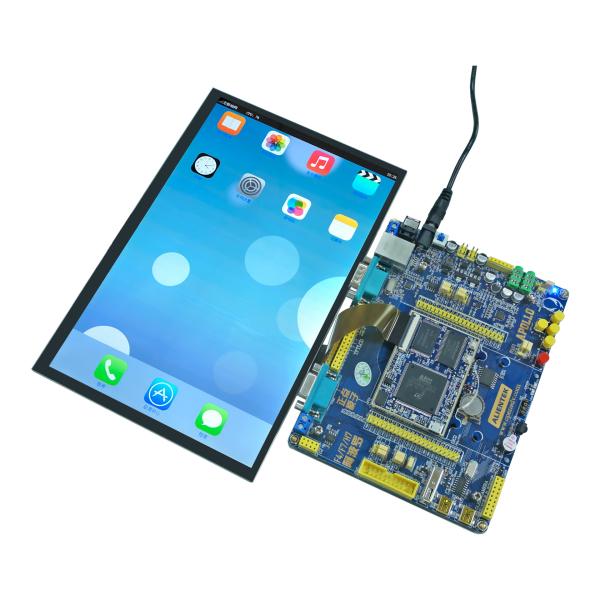

10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D

Brand Name : HuaXin

Model Number : HX101WX001-WCT

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $88

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : display tft touch

name : tft touch screen

size : 10.1 inch

resolution : 1280X800

Brightness : 300c/d

Interface : 24 bit RGB

Contact Now

10.1 Inch TFT Display Module with PCB and Touch Panel
Key Specifications
Display Technology TFT Touch Screen
Size 10.1 inch
Resolution 1280 × 800
Brightness 300 cd/m²
Interface 24 bit RGB
Technical Parameters
Part No. HX101WX001-WCT
Panel Size 10.1 inch TFT LCD Display + CTP + PCB
LCD Type IPS
Module Size 229.46 × 149.10 × 4.85 mm
Display Area 216.96 × 135.60 mm
Number of Dots 1280 × 800
View Angle Free
Interface Pins 24 bit RGB
Luminance 300 cd/m²
Touch Panel With CTP
Product Images
10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D 10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D 10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D 10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D
Drawing & Pin Definition
10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D
TFT Product Knowledge
10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D 10.1 Inch Serial Port Screen With Touch Panel 1280X800 24 Bit RGB Interface 300c/D
Manufacturer Advantages
  • Cost-effective factory base located in inland city
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and consistency
  • Professional engineers with 20+ years experience in LCD field
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi

Founded: 2009

Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Registered Capital: 20 million

Employees: 500+ (10% R&D, 15% QC)

Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand/Day
Backlight Production 100 200 300 500 500 Thousand/Day
OLED Production 10 20 30 40 50 Thousand/Day
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from handheld devices to large panels
  • Backlighting: Typically uses LED illumination
  • Applications: Versatile usage across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some alternatives
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Restricted color gamut range
