3.37 inch yellow/green PMOLED display 240*128 dots 3/4-wire SPI interface driving IC SSD1322

  • 1
  • 2
  • 3

Brand Name : HuaXin

Model Number : HX240128-02

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $24

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : OLED display

name : PMOLED display

size : 3.37 inch

Color : yellow/green

Brightness : 100c/d

interface : 3/4-wire SPI

Driving IC : SSD1322

Contact Now

3.37 inch yellow/green PMOLED display 240*128 dots 3/4-wire SPI interface driving IC SSD1322
Key Specifications
Part NO. HX240128-02
Display Technology PMOLED
Diagonal Screen Size 3.37 inch
Resolution 240*128
Viewing Angle free
Active Area (mm) 77.58x42.3mm
Module Size(mm) 89.52*54.41*2.05
Pixel pitch 0.315x0.315
Pixel size 0.29x0.29
Operation Temp -30~80
display color yellow/green
Interface 3/4-wire SPI
Pin q'ty 15 PINS
driving IC SSD1322
Connecting method connector

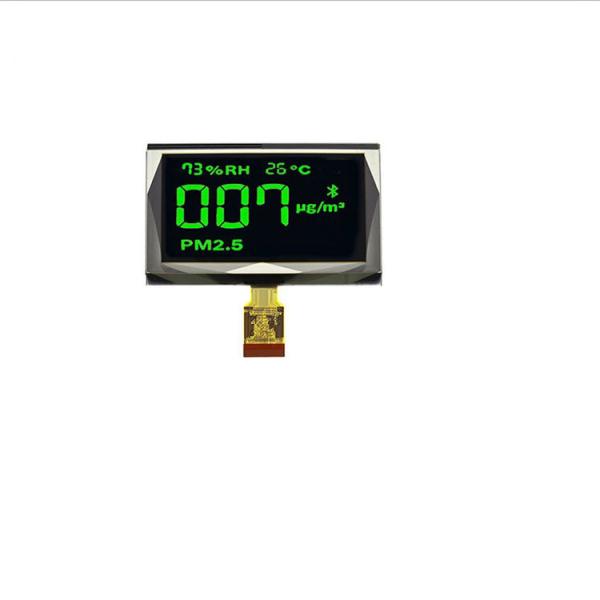

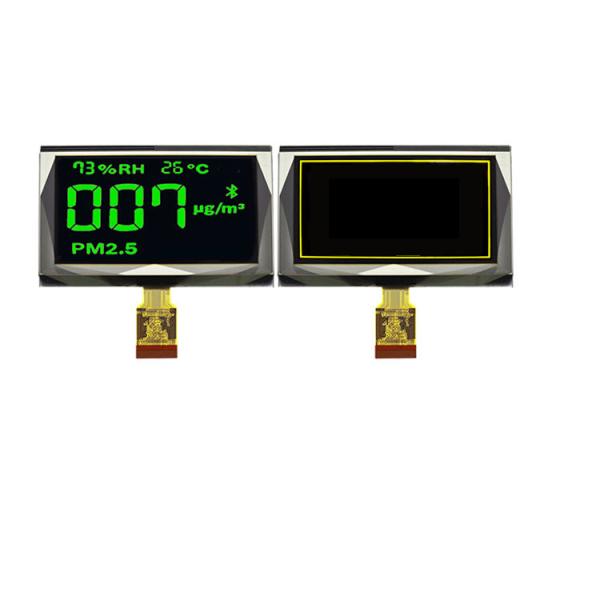

Product Images

3.37 inch yellow/green PMOLED display 240*128 dots 3/4-wire SPI interface driving IC SSD1322

3.37 inch yellow/green PMOLED display 240*128 dots 3/4-wire SPI interface driving IC SSD1322

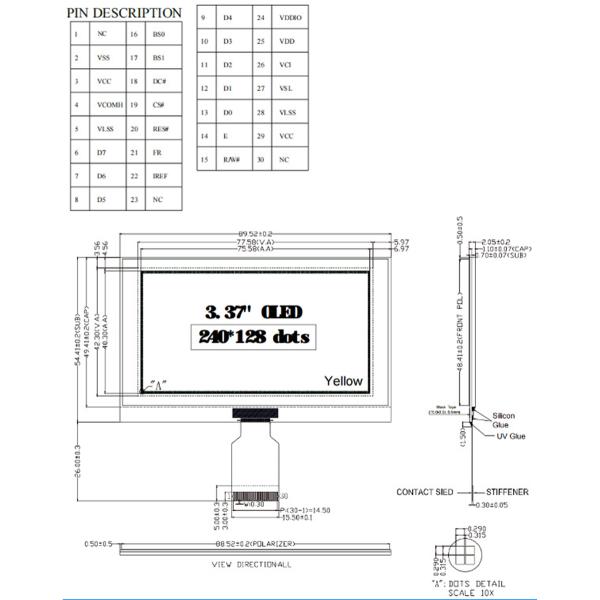

Technical Drawings

3.37 inch yellow/green PMOLED display 240*128 dots 3/4-wire SPI interface driving IC SSD1322


OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter lifetime than LCD and TFT
PMOLED Characteristics
  • Passive matrix addressing scheme with independent pixel control
  • High contrast and vibrant colors without backlight
  • Power efficient - only active pixels consume energy
  • Thin and flexible design suitable for wearable devices
  • Ideal for small-sized screens with moderate resolution requirements
Product Applications
  • Wearable devices
  • Portable audio players
  • Thermostats and home automation
  • Car dashboards and instrument clusters
  • Medical devices
  • Consumer electronics
  • Industrial and professional equipment
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009

High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED displays.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product 2021 2022 2023 2024 2025
LCD (thousands/day) 4.5 9 9 9 9
LCM (thousands/day) 70 150 300 450 450
Backlight (thousands/day) 100 200 300 500 500
OLED (thousands/day) 10 20 30 40 50
